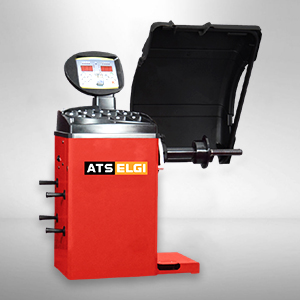

Model : ATS 67 – F7DA

  • Automatic acquisition of diameter, distance.
  • Machine has 5 ALU balancing programs and 2 ALU smart balancing programs.
  • LED illuminator for easy and clear operation.
  • Calibration is easy to proceed so the machine can get back its precision quickly.
  • Machine has manual pedal brake to help user while applying weight on the wheel.
  • Intelligent toggle of STD and ALS2 balance modes.
  • Machine will go into stand-by when it is not used for certain time.
Parameter Range
Rim diameter 1" – 28" inch.
Max. Wheel weight 70Kg.
Max. Wheel diameter 1118mm.
Rim width 1.5" – 20".
Precision ± 1g.
Motor Power 90W.
Power requirements 100/230V 1Ph.
Rotation per minute 140rpm.
Balancing time 7s.
Second time mounting test ≤5g.
