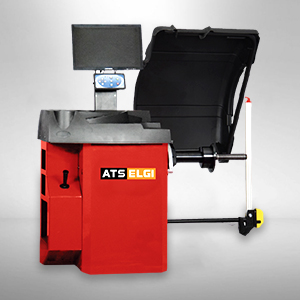

ATS 76 VIDEOGRAPHIC WHEEL BALANCER

Model : ATS 76

  • Automatic acquisition of diameter, distance and width.
  • Machine has 5 ALU balancing programs and 2 ALU smart balancing programs.
  • Machine has optimisation function and weight split function.
  • LED illuminator for easy and clear operation.
  • Intelligent toggle of STD and ALS2 balance modes.
  • Machine will go into stand-by when it is not used for certain time.
  • Motorcycle adaptor can be optionally equipped with the machine.
  • Six o'clock stick on mode, with laser indicating line, fast and convenient.
  • The machine can automatically lock the wheel on imbalance position by electromagnetic braking function.
Parameter Range
Rim diameter 1" – 28" inch.
Max. Wheel weight 70Kg.
Max. Wheel diameter 1118mm.
Rim width 1.5" – 20".
Precision ± 1g.
Motor Power 90W.
Power requirements 100/230V 1Ph.
Rotation per minute 140rpm.
Balancing time 7s.
Second time mounting test ≤5g.
