HEAD LIGHT BEAM ALIGNER

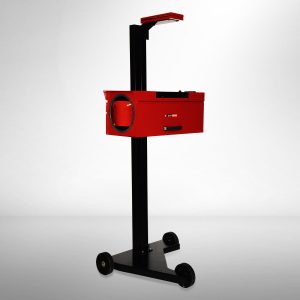

The headlight beam aligner is used for aligning the beams of the motorcycles , LMV’s and heavy vehicles. It is the most versatile and user friendly instrument available. The headlight beam aligner consists of luxmeter which can move in a vertical axis and fixed on a base with wheels allowing it to move horizontally
Model : HLBA
- Easy to use
- Analog/Digital luxmeter
- Passenger cars
- Commercial vehicle
- 2 wheelers
| Column height | 1413 mm |
| Lens Diameter | 200 mm |
| Lens type | Glass |
| Leveling of HBT | optical visor with 3 wheels on top |
| Optical box shape | Rectangular(Metallic) |
| Rear Panel | Adjustable with calibrated wheel |
| Lux meter | Analog or Digital |
| Indication available | Lux values at 25 m |
| Dimension | 1535 x 630 x 630 mm |
| Weight | 30 Kg |
| Measuring range | Min : 240 mm , Max : 1280 mm |
| Power supply | 9 V |
| Accuracy (Analog) | +/- 10% |
| Accuracy (Digital) | +/15% (15-32 Lux) , +/- 10% (32-64 Lux),+/- 5%(64-240 Lux) |
