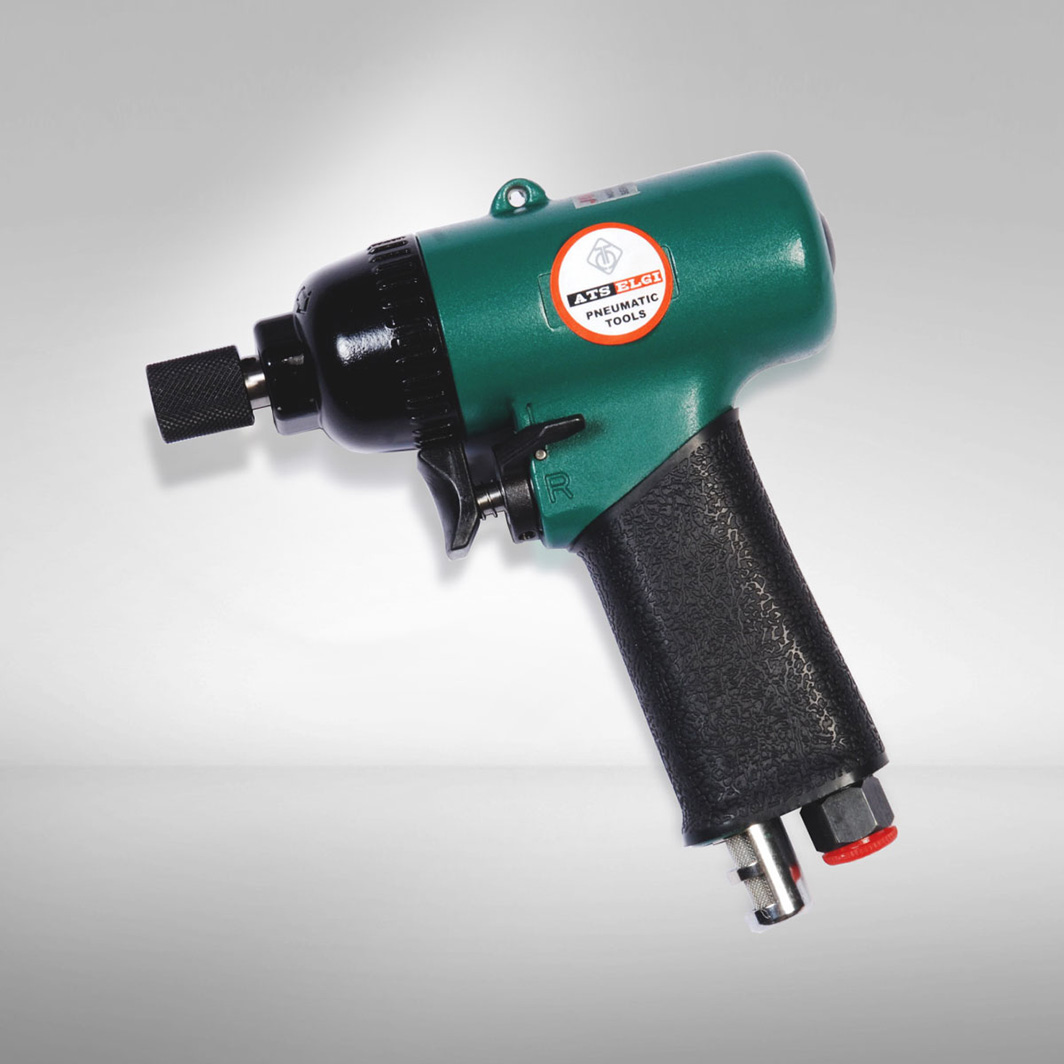

Impact Drivers
ATS ELGI Impact Drivers are ideal for driving screws by applying sufficient torque and continuous operation. These can be best used in assembly lines, furniture, wood working and for motor vehicles that use variable density material where torque accuracy is not critical.
Applications
- Driving screws with lighter torque, industrial assermbly line, white goods industries, furniture industries, two wheelers assembly.
- Double-hammer impact mechanism.
- Positive ball locking.
- Positive action trigger.
- Single reverse button.
- Compact, light weight (6.0 kg) positive ball locking.
- Built-in power regulator.
| Model | Square Drive (inch) | Bolt Size | Clutch Mechanism | Working Torque | Max. Torque | Net Weight | Air Inlet in – NPTF | Min.Hose Size |
|---|---|---|---|---|---|---|---|---|
| SP1826S6 | 3/8 | M8 | Single Dog | 7- 41 | 68 | 0.68 | 1/4 | 3/8(10) |
| SP 1135B | 3/8 | M10 | Single Hammer | 7 – 100 | 170 | 1.3 | 1/4 | 3/8(10) |
| SP1143S | 3/8 | M14 | Dyna Jaw | 50 – 320 | 350 | 1.6 | 1/4 | 3/8(10) |
| SP7142S | 3/8 | M10 | TwinDog | 50 – 270 | 310 | 1.4 | 1/4 | 3/8(10) |
| SP1138 | 3/8 | M10 | Single Hammer | 7 – 70 | 140 | 1 | 1/4 | 3/8(10) |
