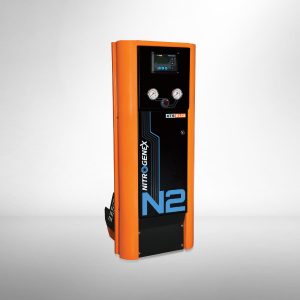

NITROPRO – NITROGEN GENERATOR

Scope of Supply

ATS ELGI Scope

  • N2 NITROPRO

Customer Scope

  • Over all space required 450x523x1311
  • Level of Floor ±20mm (Machine should be placed firm should not have shake movement)
  • External Inflator with Air Pressure Requirement 7.5 to 10 bar
  • Power Requirement Single phase with earth 230V AC
  • Longer tyre life
  • Oxidation is blocked
  • Nitrogen is a green alternative
  • Reduces the tyre’s running temparature
  • Improves the ride quality
  • Increases tyre life
  • Keeps tyre pressures more constant
  • Slows the rate of pressure loss
  • Dosen’t react with the tyre and RIM materials
S. NO MODLES NITROPRO (N2 Generator)
1 Recommended Input Pressure(Kg/cm2) 12
2 Purity of Nitrogen(%) 95-99
3 Storage Tank Size(Ltrs) 60
4 N2 Generating Capacity(lph) 3500
5 Output Pressure(Kg/cm2) 10
6 Pre set inflation External input
7 Display External input
8 Hose system(10 m) External input
9 Foot connector External input
10 Ontime purity Single Hose
11 Inflation mode N2
12 Inflation system External inflators
13 Tyre pressure setting range External input
14 Over all dimension (LxWxH)(mm) 450x523x1311
