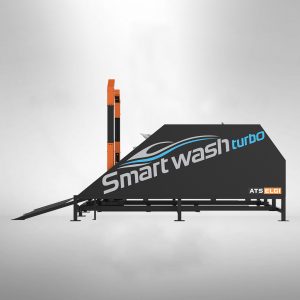

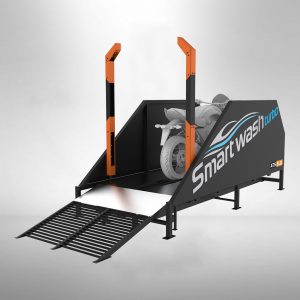

SMARTWASH TURBO

ATS ELGI has launched the two wheeler washer – Smartwash Turbo that meets the high demand from two wheeler workshops as they increasingly adopt automation to improve productivity and lower dependence on human resources.

The product is ideal for washing both motorbikes and scooters. It is capable of washing two wheelers of up to 2.2 meters in length, 0.89 meters in width and 1.36 meters in height.

Adding to its strong product portfolio in washing and continuing the world of washing (WOW) journey from conventional car washers to automatic and semi-automatic washers, Smartwash Turbo is the latest addition for two wheeler segment customers.

The product is set to dramatically improve the efficiency of workshops. At present, it takes at least 2-3 staff and 5-10 minutes to wash a two wheeler manually. Manual washing of a two wheeler also consumes around 90 liters of water.

Now, with the introduction of two wheeler washer, a workshop can accomplish the task in 2-3 minutes with only 38-40 liters of water and reduced staff. It will considerably reduce the shampoo and power consumption too.

  • Less water consumption- Reduces the water consumption by almost 50%.
  • Less manpower – Reduces the dependency of skilled manpower and operator fatigue.
  • Superior wash quality – Ensure quality of wash throughout the day.
  • Gentle and safe of motor bikes – Ergonomically designed to ensure effective cleaning.
  • Quick wash – Quick turbo wash in just 52 seconds (excluding manual wiping)
  • Can wash 10-15 two wheelers per hour.
  • Takes only 52 seconds per two wheeler wash.
  • Simultaneous operation of integrated under chassis washer with 6 nozzles ensures time savings and reduced water consumption.
  • Streamlines water and power usage.
  • Reduces dependence on skilled people.
  • Improves washing quality and maintains it throughout the day.
  • Lowers water consumption – 38-40 liters/two wheeler wash.

Smartwash Turbo

S.No PARAMETERS VALUE
1 WATER PUMP WORKING PRESSURE 17±2 bar
2 MAXIMUM WASHABLE BIKE DIMENSIONS 2210 X 1360 X 890 mm3
3 MAXIMUM WATER CONSUMPTION PER BIKE 45 L
4 MAXIMUM SHAMPOO CONSUMPTION PER BIKE 20 ml
5 CYCLE TIME PER BIKE (WITHOUT WIPING) 52 ± 2 sec
6 NO OF WATER NOZZLES 14 NOS
7 NO OF SHAMPOO NOZZLES 4 NOS
8 GUN FOR WHEEL ARCH CLEANING 1 NOS
9 INPUT SUPPLY VOLTAGE 3Ø , 415+10%/-15%
10 FREQUENCY 50±5%
11 POWER REQUIREMENT 7.5 hp
12 SPACE REQUIREMENT 4100 (L) X 1450 (W) X 2050 (H) mm3
13 INLET WATER CONNECTION 1 ½”(M)
14 COMPRESSED AIR REQUIREMENT 6-8 bar
15 INLET AIR CONNECTION ½” (F)
16 INPUT SUPPLY VOLTAGE 3Ø , 415+10%/-15%

Two wheeler washer- Variants

Smartwash Turbo- Base model
  • Two wheeler washer
  • Drive-in ramp
Smartwash Turbo- with Drive-in & Drive-out ramp
  • Two wheeler washer
  • Drive-in ramp
  • Drive-out ramp
Smartwash Turbo- with splash guard
  • Two wheeler washer
  • Drive-in ramp
  • Side splash guard assembly
Smartwash Turbo- with splash guard and drive-out ramp
  • Two wheeler washer
  • Drive-in ramp
  • Drive-out ramp
  • Side splash guard assembly
