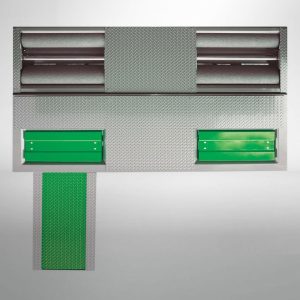

Test lane is an equipment which performs multiple tests to check the health of a vehicle with the Roller Brake, Suspension & Side Slip testers. The findings enhance the serviceability and boost the on road health of the vehicle.
Vehicle Safety Testing Equipment
- Roller brake tester
- Suspension tester
- Side slip tester
- Measurement value,differential display and graphic of PC-Monitor (option) /Analog display
- Automatic start-up monitoring
- Delayed switch-on after entry and switch-off after exit
- Automatic slip switch-off with pointer, automatic stop and restart
- Single wheel switching
- Electronic strain gauge measurement system
- Self supporting closed roller set
- Welded roller surface
- Lockable main switch
- Interface connection – RS 232
| Parameter |
Range |
| Dimensions |
1020 x 540 x 95 mm |
| Measuring Plate |
1000 x 460 mm |
| Accuracy |
± 0.1 m/Km |
| Measurement Range |
± 20 m/Km |
| Max Axle Weight |
3500 Kg |
| Parameter |
Range |
| Dimensions |
2320 x 800 x 280 mm |
| Approximate Weight |
450 kg |
| Track Width |
800/2100 mm |
| Excitation Stroke |
6 mm |
| Excitation Frequency |
25 Hz |
| Wheel Load |
Max 1000 kg |
| Max. Axle Weight |
2000 kg |
| Power Supply |
3 x 400V + PE / 50 Hz |
| Motor Power |
2 x 3 kw |
| Parameter |
Range |
| Dimensions |
2320 x 680 x 280 mm |
| Track Width |
780 x 2200 mm |
| Approximate Weight |
400 kg |
| Maximum load per axle |
4 T |
| Diameter of rollers |
206 mm |
| Separation between rollers axles |
400 mm |
| Power Supply |
3 x 400V + PE / 50 Hz |
| Fiction Rate |
Dry approx. > 0.8 |
| Wet approx. > 0.6 |
| Measuring Range |
0.6 kN |
| Top Speed |
5 km/h |
| Motor Power |
2 x 4.6 kw |
