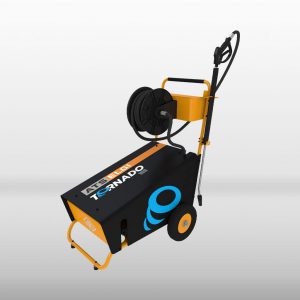

TORNADO
High Pressure washer have been widely employed for industrial cleaning application and are acquiring a main role in heavy industry has they boost efficiency and production capacity in industrial line.
We at ATS ELGI developed new age industrial high pressure washer, Tornado the world class high pressure washer with 160 bar pressure which can meet most of the industrial applications. This system is designed to wash high pressure washer by consuming less water and offers easy maneuverability and flexibility of cleaning.
- Low Maintenance
- Sturdy Built
- Increase Productivity
- Time Saving
- Easy Manoeuvrability
- User Friendly
S. No | Parameter | Unit | Data |
---|---|---|---|
1 | Machine Type | Triple plunger pump – Direct Driven | |
2 | Input Supply Voltage | V | 3 phase, 415 V |
3 | Frequency | Hz | 50 |
4 | Total connected load | HP | 5 |
5 | Maximum operational load | HP | 5 |
6 | Power | kW | 3.7 |
7 | Maximum Water pump operating pump | bar | 160 |
8 | Maximum water consumption | lpm | 11 |
9 | Length of Output hose | m | 12 |
10 | Type of Gun | Trigger Gun | |
11 | Type of Water Nozzel | Variable angle nozzle | |
12 | Overall Dimensions (LXWXH) | mm | 950x630x1060 |
13 | Approximate Weight | kg | 80 |
