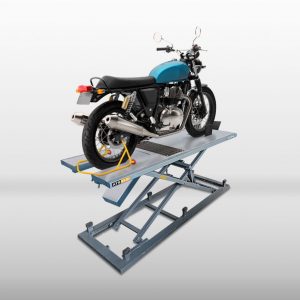

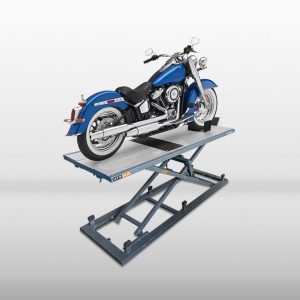

TWO WHEELER LIFT – 400 KG (BIG BIKE LIFT)

ATS ELGI’s BIG BIKE LIFT is a sturdy equipment with wider platform to facilitate bigger & wider motorbikes to be serviced efficiently, while reducing operator fatigue

  • Zero Maintenance
  • 3 stage safety lock mechanism
  • Wide Platform with SS / MS top sheet
  • Self-lubricating roller bushes
  • Wheel service ramp included
  • Upto 8 lifts operation by single power pack
Product Specification – Two Wheeler Lift – 400 kg
Parameter Data
Lifting Capacity (Kgs) 400
Lifting Time (Secs) 20
Max. Lifting Height (mm) 900
Min. Lifting Height (mm) 200
Platform size (LxW)(mm) 2250 x 750
Safety Mechanism Mechanical lock
Operation Electro – Hydraulic
Oil grade ATS ELGI Hoist Lube
Oil tank capacity (Litres) 15
Power Pack  (Optional) Motor Details -0.75 HP, 1PH
Power Supply -230 V / 50 Hz
