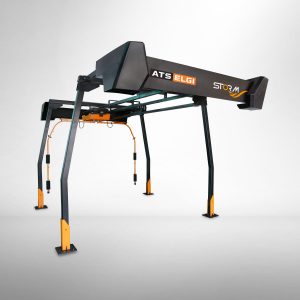

TOUCHLESS CAR WASHER
STORM, ATS ELGI brings a simple and pragmatic approach to car washing. STORM enables a quick wash in less than 3 minutes. The ultrasonic sensors, the corrosion resistant design, the torque limiter, the foam stoppers and the integrated under chassis washer makes STORM the product to reckon.
- Automatic vehicle length sensing
- Quick wash time
- Torque limiter stops the machine on any obstruction
- Soft PE foam stopper for enhanced vehicle safety
- Low water consumption compared to a conventional wash
- Low power consumption compared to a conventional wash
- Optional Integrated under chassis washer
Top body wash for Cars & SUVS.
Machine Type | Overhead carriage Dual swing arm type |
Required space, mm (LxWxH) | 7000 x 3800 x 3100 |
Overall dimension, mm (LxWxH) | 6560 x 3710 x 3010 |
Maximum washable dimension of car, mm (LxWxH) | 4900 x 2300 x 1900 |
Operating system (water) pressure, bar | 16 |
Water consumption per car, litres | 80 – 105 |
Shampoo consumption per car, ml | 40 – 60 (Recommended dilution: 1:135 ) |
Cycle time per car, min (Excluding manual wiping) | 2 – 2.7 |
Input supply | 3 |
Total connected load, kW | 5.1 |
Total operational load, kW | 4.34 |
Power consumption per car, kWh | 0.08 – 0.1 |
